The prefabricated sewage pumping station is a complete, ready-to-install system designed for the reliable collection and pumping of wastewater in applications where gravity drainage is not possible. It is supplied fully preassembled and equipped with all essential hydraulic and mechanical components, significantly reducing installation time and on-site work.
The pumping station is delivered without pumps, allowing full flexibility in pump selection and enabling the customer to install a pump that meets 100 percent of the hydraulic and operational requirements of the project.
The sewage pumping station is supplied complete with:
The coupling foot elbow is manufactured from gray cast iron, while the guide rails, pressure line and filter are made from stainless steel, ensuring long service life and high corrosion resistance.
A Grundfos coupling elbow is used, allowing quick and secure installation of the pump via a flange connection on the pressure outlet. The guide rail system together with the coupling foot enables easy installation and removal of the pump for maintenance, without entering the sump.
The sumps are available in the following dimensions:
The final installation height can be adjusted using a telescopic cover, allowing precise adaptation to site conditions.
The inlet is prepared for a KG pipe DN160 and sealed using a sealing ring, ensuring a reliable and watertight connection.
The pressure line has a diameter of 48.3 mm and is finished with a 6/4” male thread, enabling direct connection to the discharge pipeline.

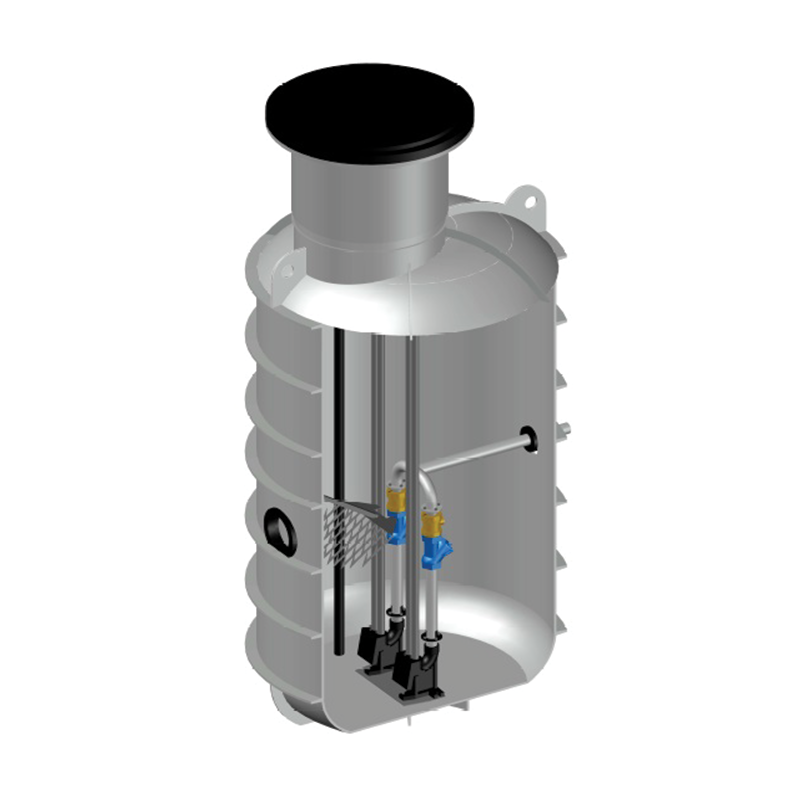

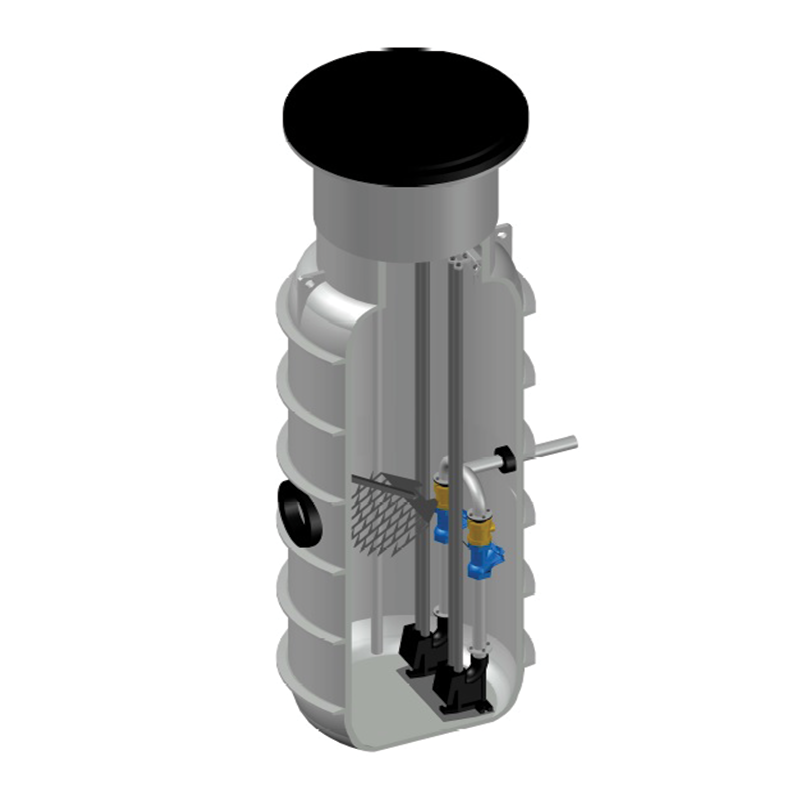

The system is available in versions for single-pump or dual-pump operation, depending on capacity and redundancy requirements.
