Deep well pumps 4" B-SP

Deep well pumps 4" B-SP

The deep well pumps type B-SP from Bakalar-PumpS are made entirely of stainless steel to ensure a long service life and reliable operation. The stainless steel impellers are capable of pumping water with an increased sand content of up to 150 g/m3.

Category: Irrigation

The deep well pumps type B-SP from Bakalar-PumpS are made entirely of stainless steel to ensure a long service life and reliable operation. The stainless steel impellers are capable of pumping water with an increased sand content of up to 150 g/m3. These pumps are suitable for pumping clean, thin and non-aggressive liquids without solid impurities and fibers.
The diffusers, shaft coupling, shaft, discharge, suction strainer and pump casing are made of pressed AISI304 stainless steel.
The hydraulic flange complies with the NEMA standard.
These pumps are designed for harsh operating conditions in industry, agriculture and large family homes.
The main advantage of our B-SP pumps is their durable construction and the materials used, which meet the requirements of our customers.

Pump material

  • Pump housing: AISI 304 stainless steel
  • Motor housing: AISI 304 stainless steel
  • Shaft, suction and displacement: AISI 304 stainless steel
  • Impellers: AISI 304 stainless steel
  • Motor coupling according to NEMA standard

Applications of the pump

  • Well water
  • Water supply
  • Irrigation
  • Pressure boosting
  • Raw water extraction
  • Heat pumps

Advantages of the B-SP pumps

  • All stainless steel construction
  • Capable of pumping increased sand content
  • Motors from Franklin Electric / F.B. submersible motors
  • Supplied ready to use

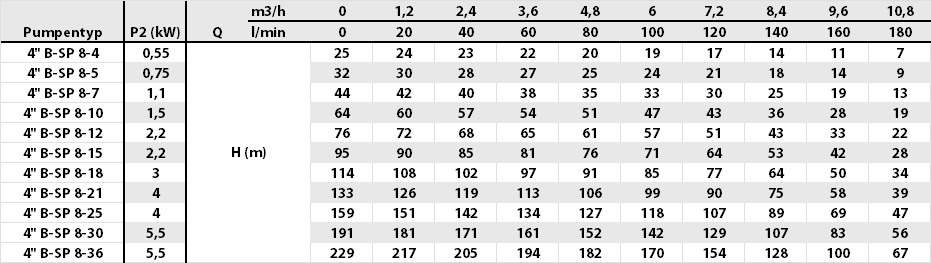

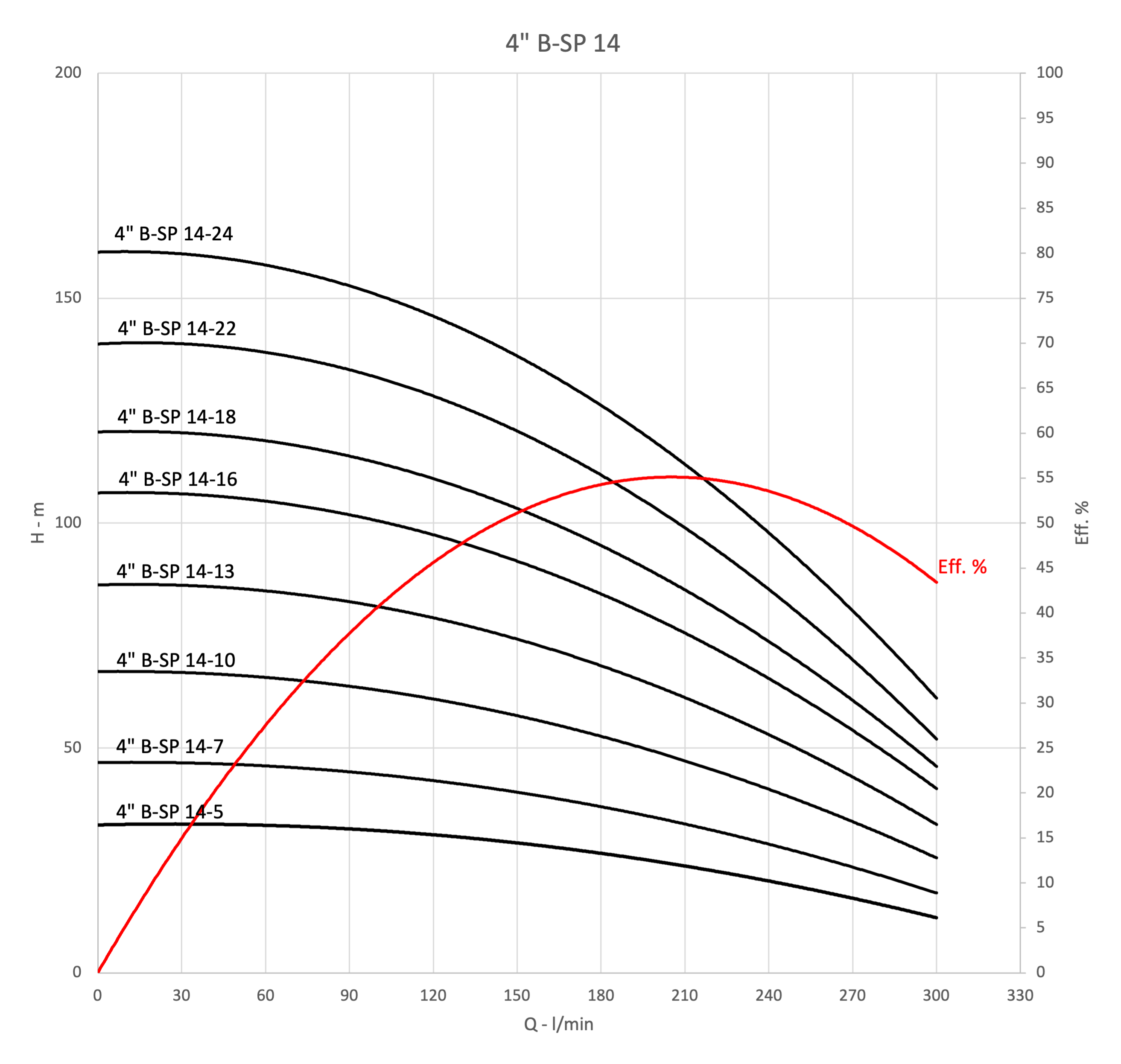

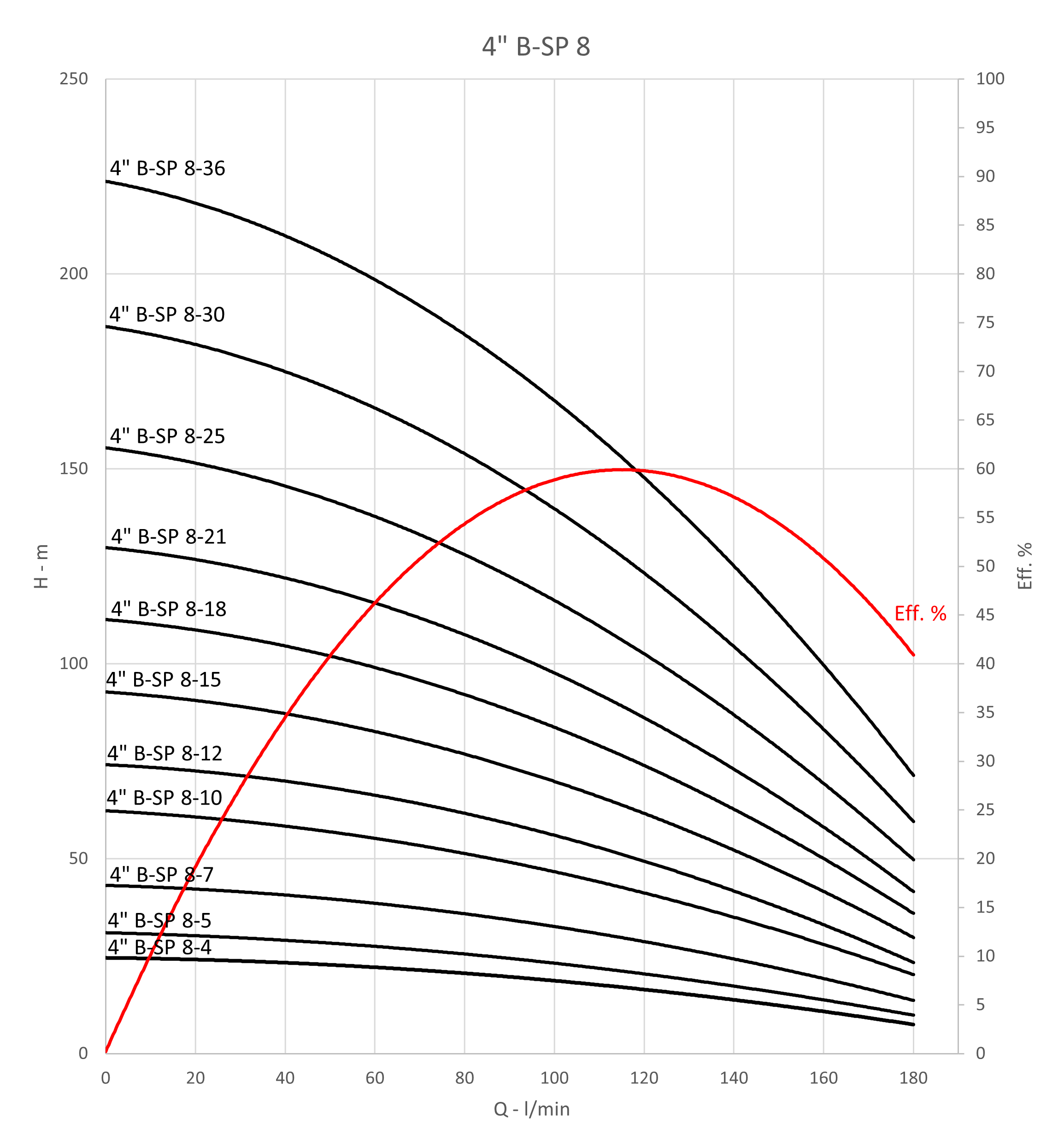

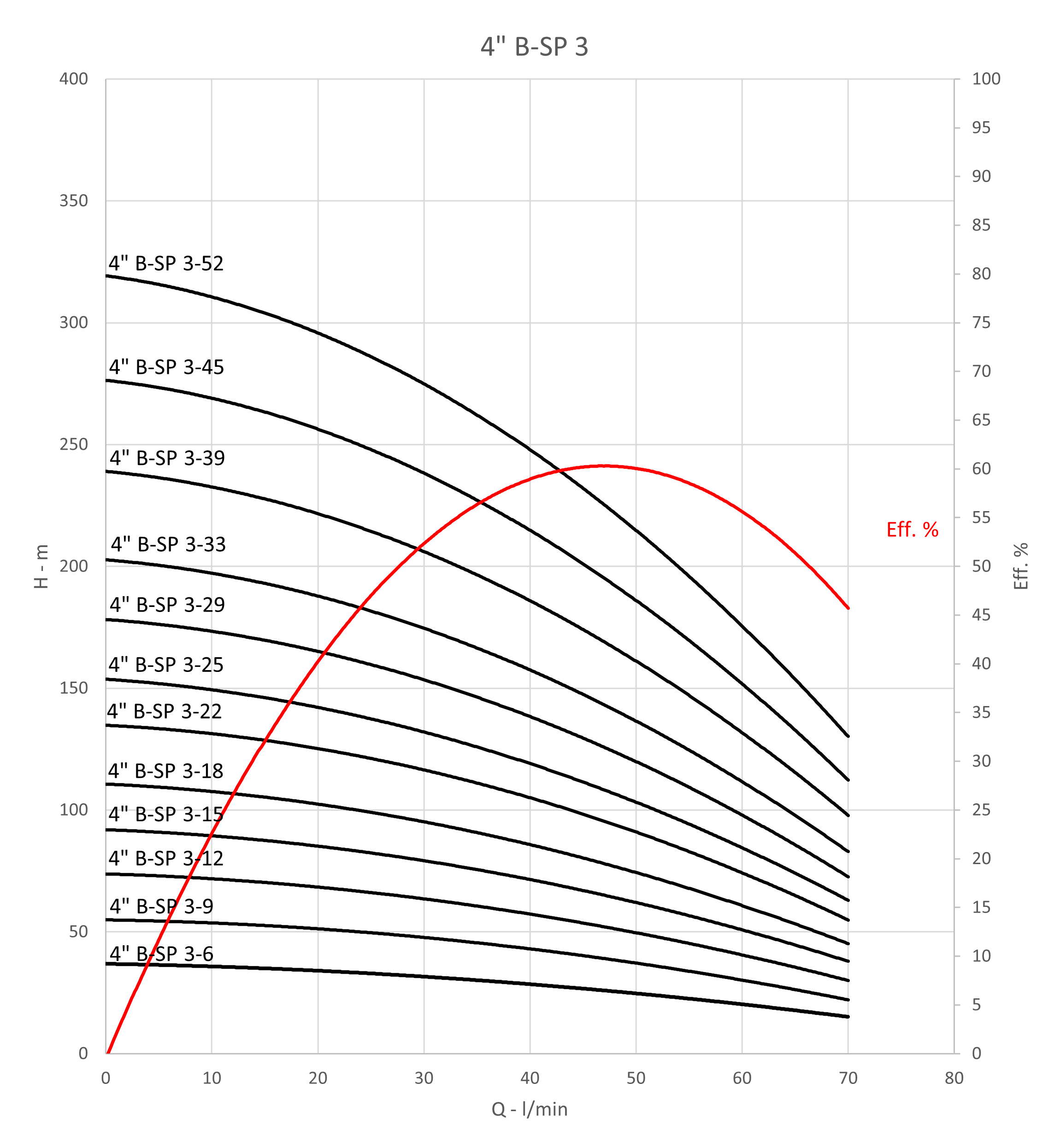

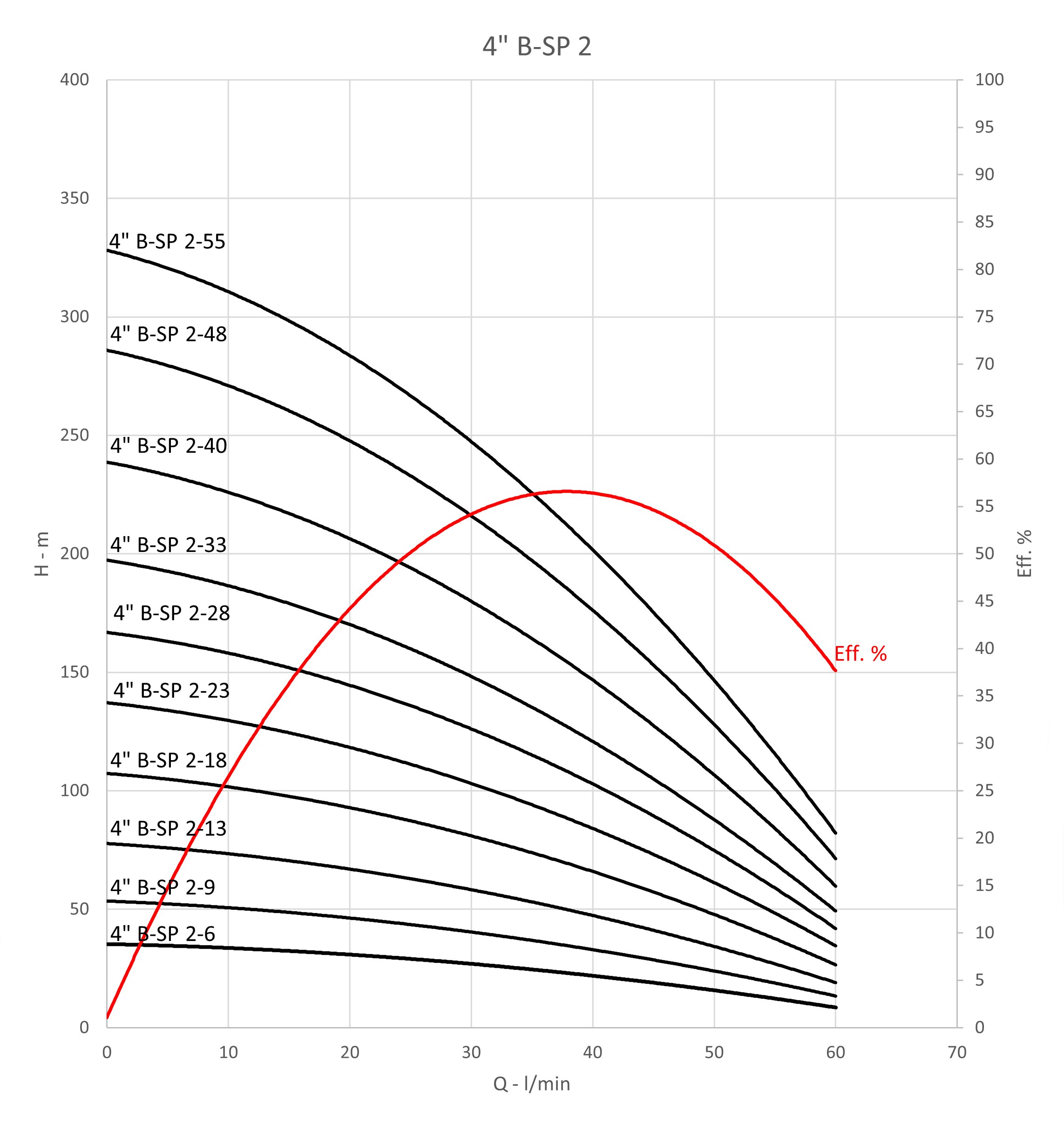

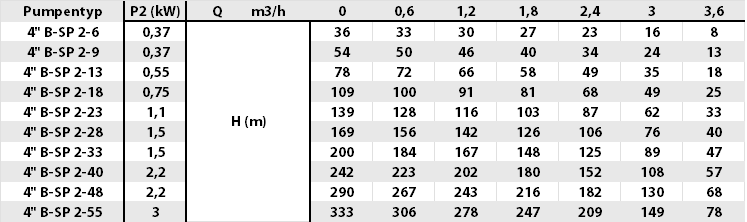

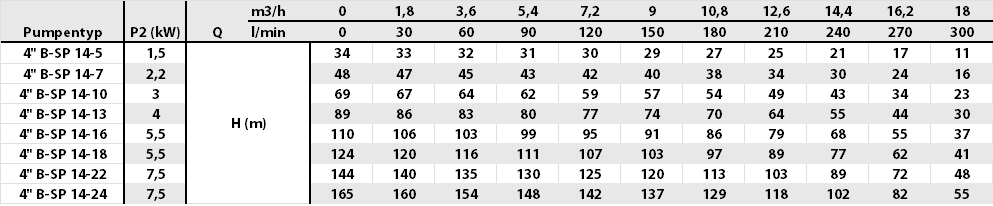

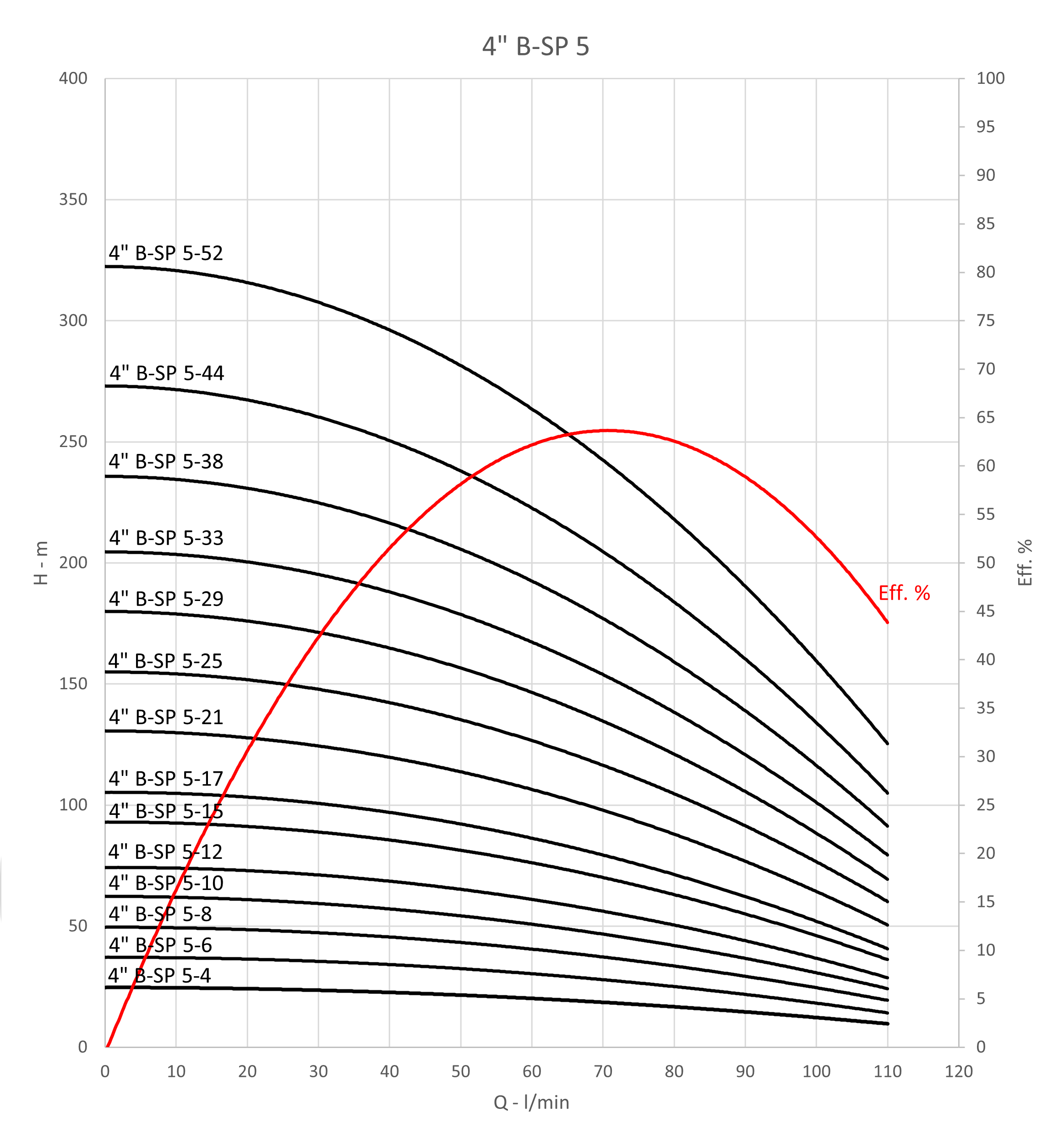

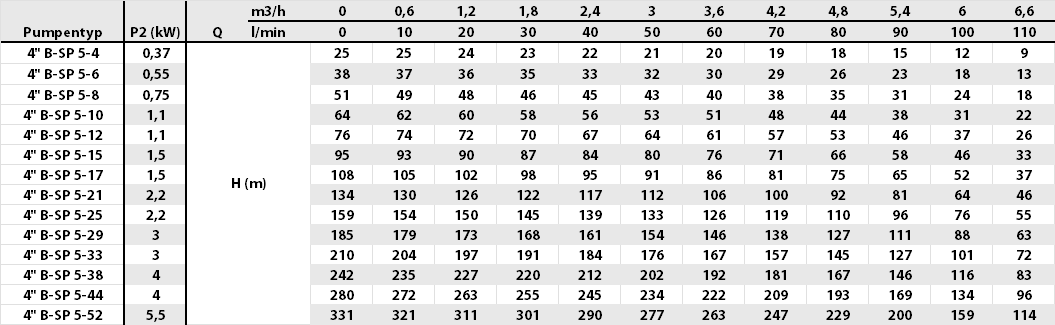

Pump sizes and performance

Max. head: up to 333m Max. flow: up to 300 l/min Max. power: up to 7,5kW Available Voltages: 230V / 3x230V / 400V Pipe connection: 5/4 inch - 2 inch
