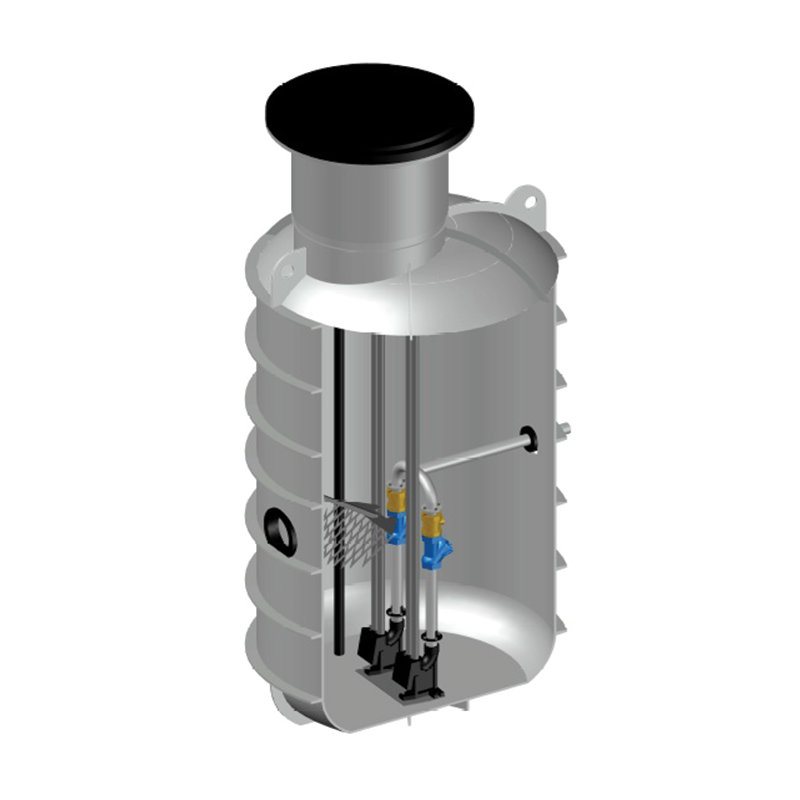

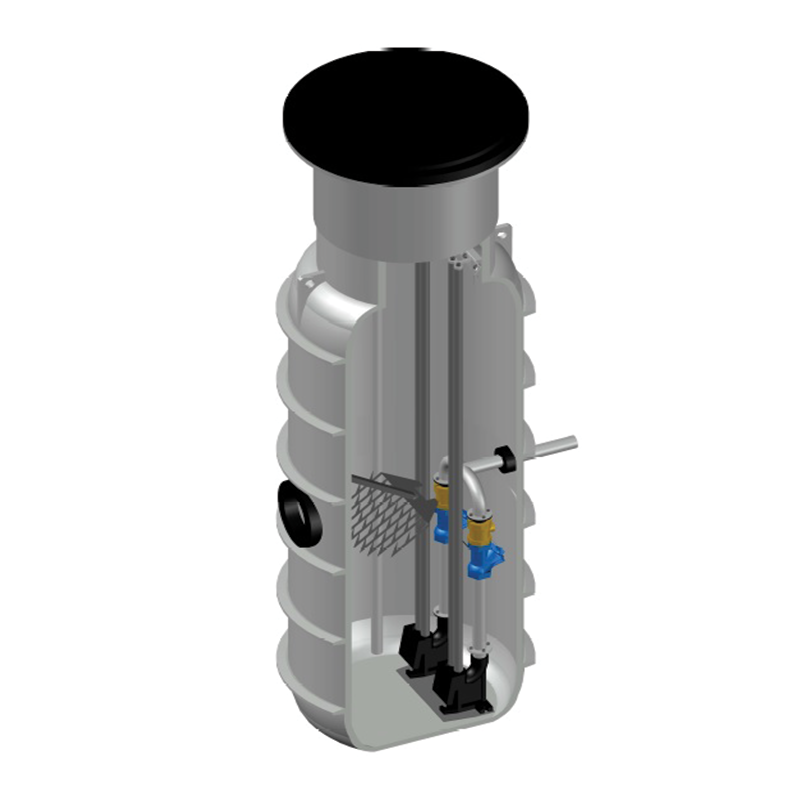

Complete sewage pumping station, which is supplied ready for installation. The sewage pumping station is already equipped with a coupling foot elbow, guide rails, pressure line, valves, non-return valves and a filter to prevent fibrous contamination. The coupling foot elbow is cast from gray cast iron, the guide rails, the pressure line and the filter are made from stainless steel.
The Grundfos elbow is used as the coupling elbow, which enables the pump to be easily installed by means of a flange on the pump's pressure outlet.
The pump shaft is supplied without a pump, allowing the customer to install a pump that meets 100% of their requirements.
The guide rails and the coupling foot elbow allow easy installation of the pump in case maintenance is required.
The sumps are available with a diameter of DN800 and DN1200 and a height of 2633 mm / 3200 mm and 2840 mm. The height can be adjusted using a telescopic cover.
The inlet is ensured by a preparation for a KG pipe DN160, this inlet is sealed by a sealing ring.
The pressure line has a diameter of 48.3 mm and is finished with a 6/4” male thread, which enables a direct connection to the pressure line.
The prefabricated sewage pumping station are available for one and two pumps.
