This complete domestic water system from Bakalar-PumpS is characterized by a single-stage jet pump of the Jet100A type in the long version.
The Bakalar-PumpS domestic water booster system is a compact, ready-to-use solution for the reliable supply of water from wells, cisterns or storage tanks. The system is based on a single-stage Jet100A jet pump (long version) and is designed for stable pressure boosting in domestic and light commercial applications.

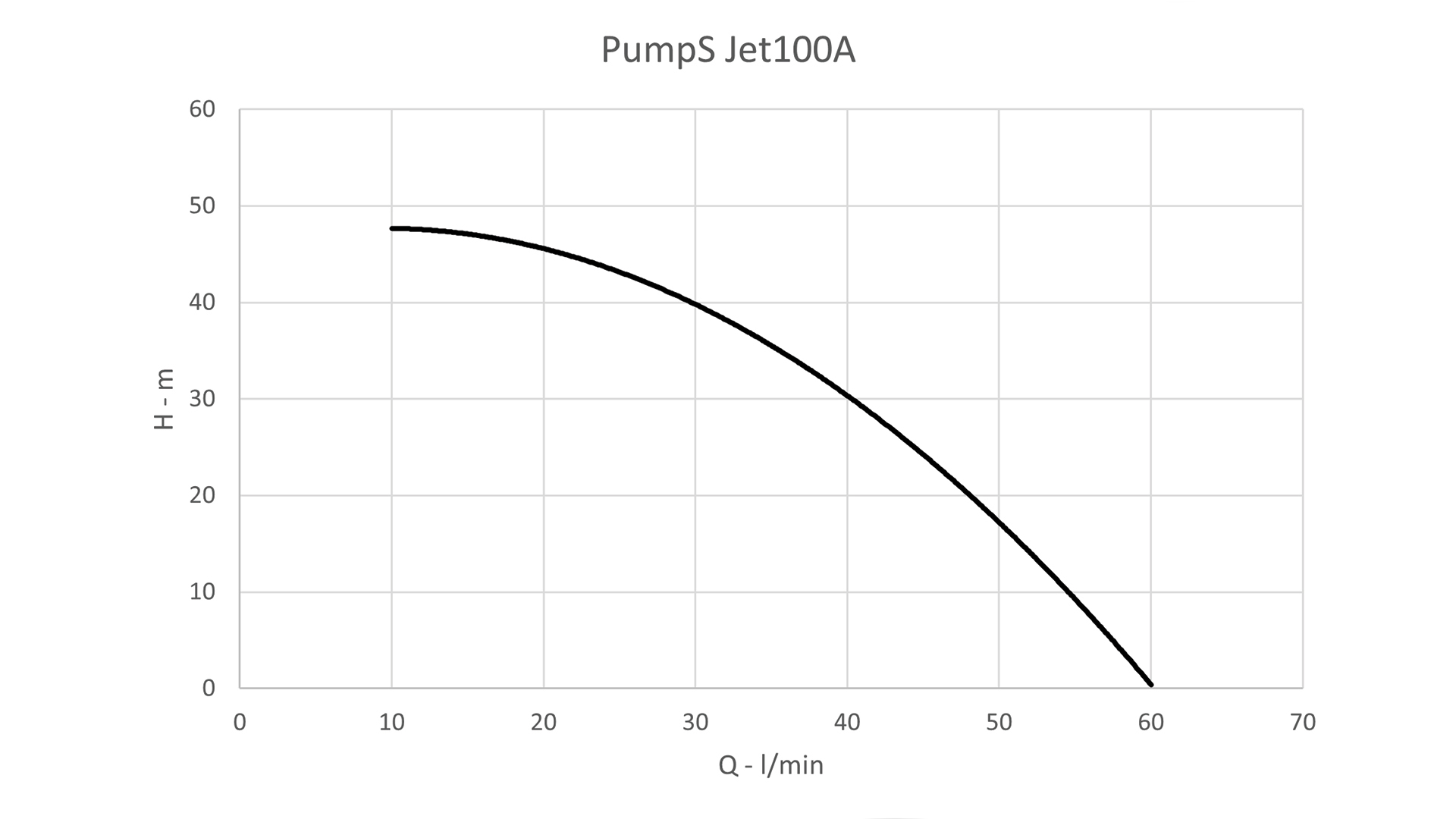

The jet pump is driven by a 1.1 kW single-phase electric motor (230 V) with copper winding, ensuring reliable operation and long service life. Thanks to its robust construction, the system achieves a maximum flow rate of up to 3.6 m³/h and a maximum delivery head of 47 m, making it ideal for house water supply and garden irrigation.
The booster system is equipped with a horizontal pressure vessel with a pressure resistance of up to 10 bar, significantly exceeding the usual market standard of 6–8 bar. This ensures:
The replaceable EPDM diaphragm inside the vessel is approved for drinking water and protects the tank from deposits, enabling versatile use of the system.
To ensure long-term reliability and diaphragm protection, the pre-charge pressure in the vessel should be checked regularly (2–3 times per year).
The system is suitable for pumping clean water and groundwater without mechanical impurities that could damage the pump hydraulics. Typical applications include:
The booster systems are available with the following pressure vessel volumes:
This allows optimal adaptation to different consumption profiles and installation requirements.
